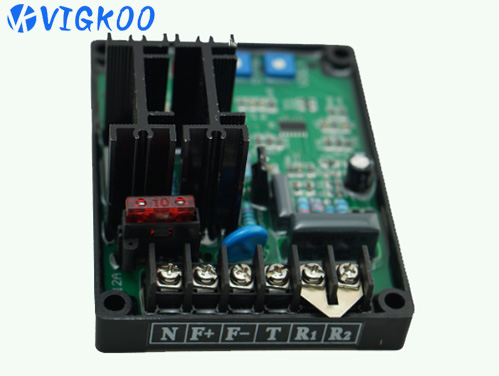

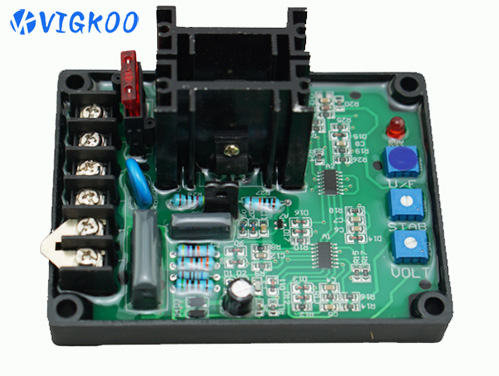

GAVR-12A is Universal 12Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator
| GAVR-12A | ||
| Input | Sensing voltage | 180~260VAC,1 phase 2 wire |
| Power voltage | 180~260VAC,1 phase 2 wire | |
| Output | Voltage | Max. 90VDC@240VAC input |
| Current | Continuous 4A | |
| Current | Intermittent 7A for 10SEE | |
| Resistance | Min.12Ω Max.100Ω | |
| Voltage Build-up | Residualvolts at AVR teminal>5VAC | |
| External Volts Adjustment | ±7% with 1KΩ 1 with trimmer | |
| Soft start ramp time | 2sec. | |
| Unit power dissipation | Max.8 Watt | |
| EMI suppression | Internal electromagnetic interference filtering | |
| Thermal. Drift | 0.03% per°C chage in AVR ambient | |
| Under freqency protection | 60Hz system presets knee point at 55Hz | |
| (Factory setting) | 50Hz system presets knee point at 45Hz | |
| Volts regulation | <±1%(with 4% engine governing) | |
| Environment | Vibration 3G@100~2K Hz | |
| Operating temperature -40~60°C | ||
| Relative humidity<95% | ||
| Storage temperature -40~85°C | ||
| Dimensions | 12.1*9.2*6cm | |
Alternator Universal 12A Generator AVR
