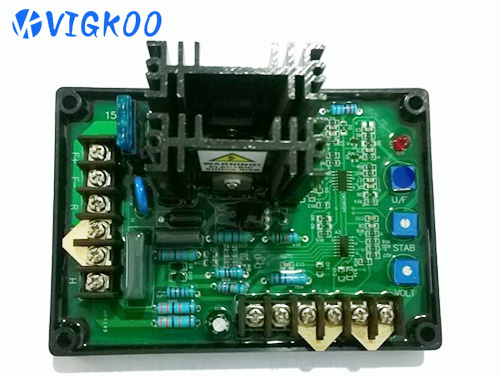

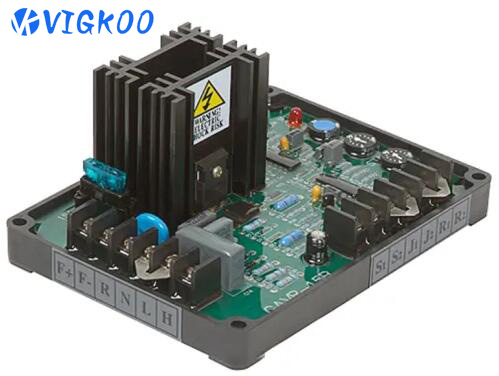

GAVR 15A

GAVR 15A AVR For Alternator Universal

GAVR-15A

Universal 15 Amp
1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator

Input data:
Sensing Input Voltage 220/400VAC,1phase 2wire
Power Input Voltage 180~240VAC, 1phase 2wire

Output data:
Output Voltage Max.90VDC@240VAC input
Current Continuous 6A

Intermittent 12A for 10SEE
Resistance Min.10Ω Max 100Ω
Voltage Build-up esidualvolts at AVR teminal>5VAC
External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
Unit Power Dissipation Max.8Watt
Alternator Universal 15A Generator AVR
