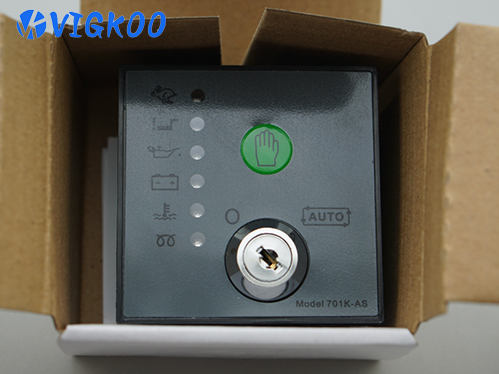

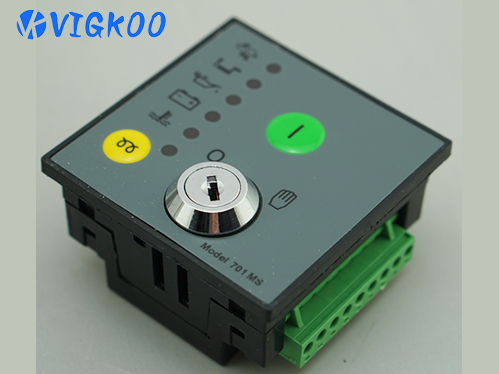

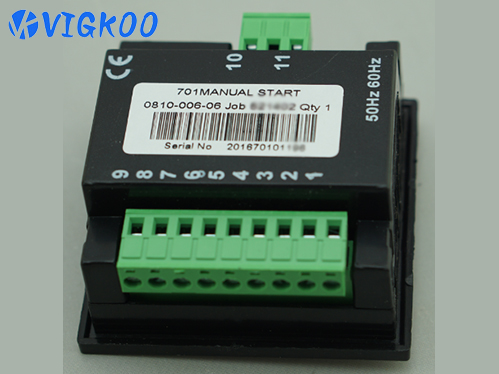

The model 701 is an Engine control module designed to control the engine via a key switch and push buttons on the front panel. The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the cause of failure by LED,giving true,first up fault annunciation. The Auto start versions of the controller will respond to a remote switched input to begin the start sequence.
| Product Name | Diesel Generator Controller Control Panel/Unit |
| Model | DSE701AS (Manual / Auto optional) |
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: |
Able to survive voltage dips during cranking. Without The need for internal batteries. |
| Alternator Input Range | 15 - 305 V AC RMS (+20%) |
| Alternator Input Frequency: |
50 - 60 Hz at rated engine speed. (Minimum 75V AC) Over speed: nominal frequency +14% (+24% Overshoot) |
| Start Output: | Solid State 1.2A negative grounding terminal |
| Run Output: | Solid State 1.2A negative grounding terminal |
| Pre-heat Output: | Solid State1.2A negative grounding terminal |
| Operating Temperature Range: | -30 to +70°C |
Diesel generator, Trailer Type, Marine, Land Use
