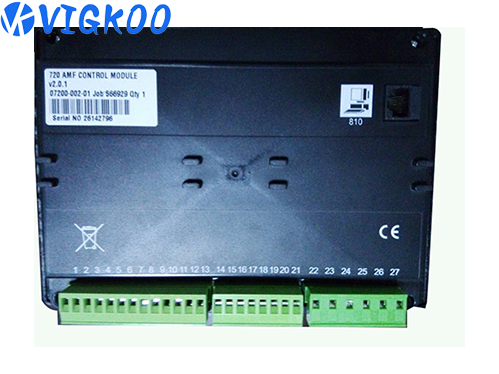

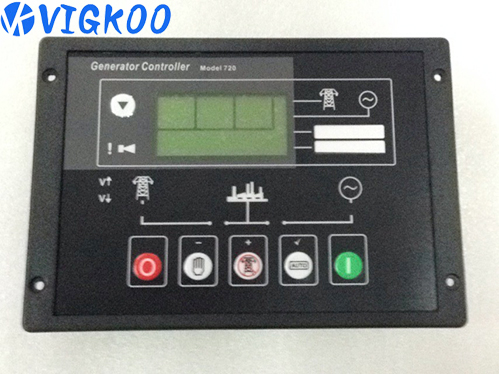

DSE720 is an Automatic Mains Failure Control Module. The module is used to monitor a mains supply and automatically start a standby generator set. The module provides indication of operational status and fault conditions, automatically shutting down and indicating failures by means of an LCD display. Selected timers and alarms can be altered by the user from the front panel.
| Generator Controller Model DSE 720 | |
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: | Able to survive for 50ms, providing supply was at least 10 V |
| before dropout and supply recovers to 5V. This is achieveable without internal batteries. | |
| Max Current | Operating 180mA at 12V, 190mA at 24V ; Standby 145mA at 12V. 150mA at 24V |
| Mains Sensing Input Range | 35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC) |
| Alternator Input Range | 35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC) |
| Auxiliary Output: | Solid state 2.4A DC at supply voltage. |
| Fuel/Start Output: | Solid state 3.4A DC at supply voltage |
| Generator C.T. | 5A secondary 0.5VA |
| Operating Temperature Range: | -30 to +70°C |
