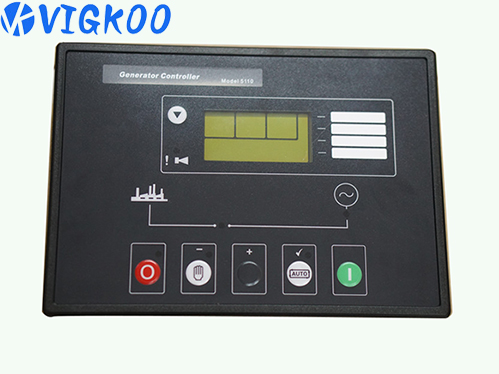

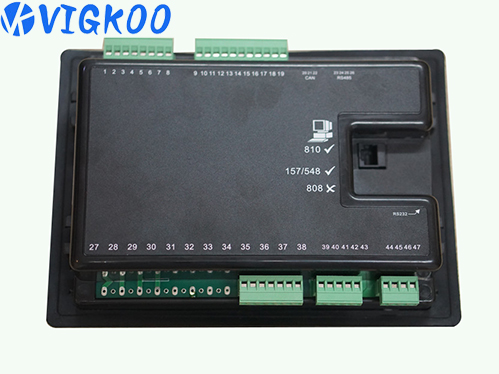

DSE5110 is an automatic engine control module. It is used to automatically start and stop diesel and gas generator sets.The module can work on both 12V and 24V.
| Generator Controller Model DSE5110 | |
| Power Supply | 8 to 35 Vdc Continuous |
| Max Current | Operating 425mA at 12 V & 215mA at 24 V; Standby 250 mA at 12 V & 125 mA at 24 V. |
| Start Relay Output: | 16 Amp DC at supply voltage. |
| Fuel Relay Output: | 16 Amp DC at supply voltage. |
| Auxiliary Relay Outputs: | 5 Amp DC at supply voltage. |
| Charge Fail / Excitation Range | 0 V to 35 V |
| Maximum operating current | 320ma at 12V, 215ma at 24v |
| Maximum operating current | 175ma at 12V, 95ma at 24v |
| AlternatorInputRange: | 15V(L-N) to 333V AC (L- N) absolute maximum |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N) |
| Magnetic Pick-up Voltage Input Range: | +/- 0.5 V to 70 V Peak |
| Magnetic Input Frequency: | 10,000 Hz (max) at rated engine speed |
| MAINS (UTILITY) SENSING INPUT RANGE | (DSE5220 only) |
| 15V (L-N) to 333V AC (L-N) absolute maximum | |
| MAINS(UTILITY)SENSINGINPUTFREQUENCY | (DSE5220 only) |
| 50-60 Hz | |
| MAINS (UTILITY) & GENERATOR LOADING | (DSE5220 only) |
| RELAY OUTPUT | 8A AC 250V |
| Generator loading Relay Output: | 8 Amp AC 250V. |
| Mains loading Relay Output: | 8 Amp AC 250V |
