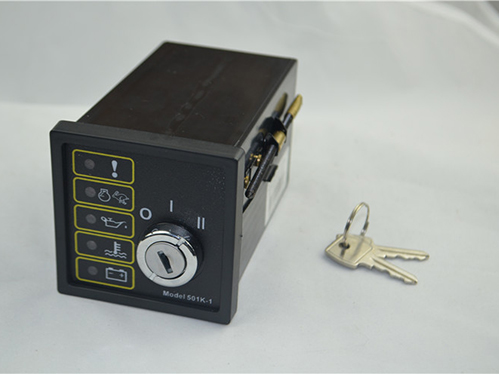

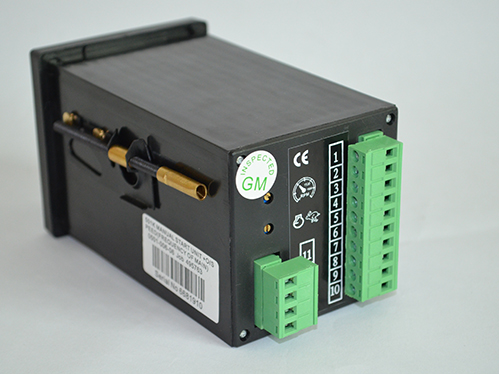

DSE501K is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on the front panel. The module is used to start and stop the engine, indicating fault conditions; automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.
| Power Supply | 9 to 33 Vdc Continuous |
| Dropouts: | Able to survive voltage dips during cranking. Do not need for internal batteries. |
| Alternator Input Range | 15 - 305 V AC RMS |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed |
| Magnetic Input Range | 0.5 V to +/- 80 V |
| Magnetic Input Frequency | 2300Hz to 6000 Hz at rated engine speed |
| Start Relay Output: | 16 Amp DC at supply voltage |
| Run Relay Output: | 16 Amp DC at supply voltage |
| Alarm Output | 1 Amp DC at supply voltage |
| Operating Temperature Range: | -30 to +70°C |
